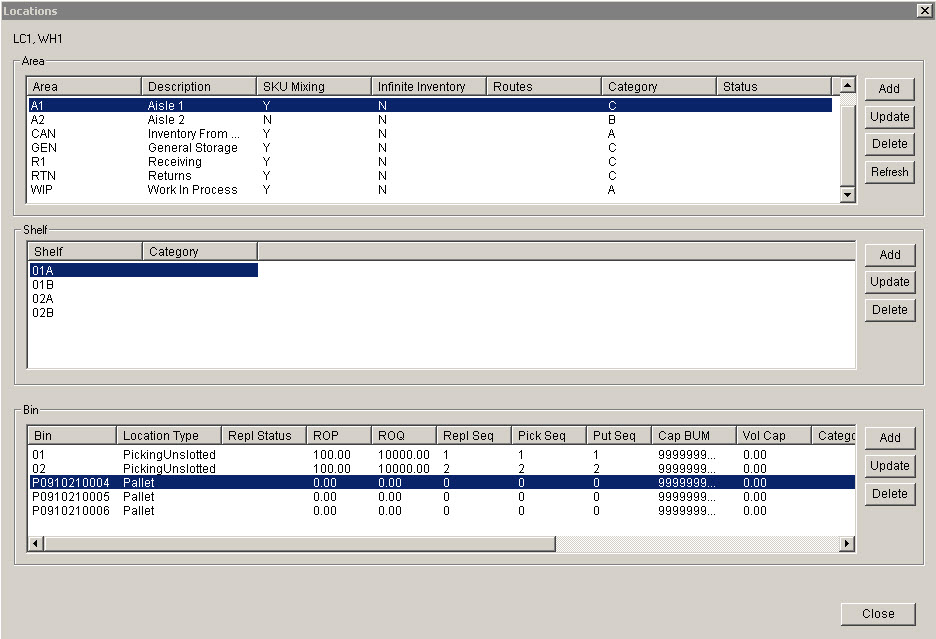

This screen allows Locations to be entered, updated, and remove. A Location in Coreflex is always comprised of an Area, Shelf and Bin. Shelves are associated with an Area, Bins are associated with a Shelf.

Buttons

• Add (Area)
  • Opens a dialog which allows Adding a new Area. Fields include:
    • Area
      • Name of the Area being added.
    • Description
      • Description of Area.
    • Category
      • This field is commonly used to signify the warehouse that the Area is in. Serveral parts of the system use this field in this way.
    • SKU Mixing
      • When set to Yes, more than 1 productid can be kept in locations in this area.
    • Type
      • Determine the type of locations kept in this Area
        • Fixed - Fixed inventory locations
        • Mobile - Carts, Trucks, Etc.
        • Pallet - Skid with a License Plate location. Pallets can be assigned to Fixed or Mobile Locations. This is used with the RF Receive Against PO for Picking Replenishment function.
      • The Fixed, Mobile, and Pallet prompts can be changed using the System Settings Area: Area Type Fixed, Mobile, and Pallet Prompt.
• Update (Area)
  • Open a dialog which allows updating of Area information for the highlighted area.
  • See the Add (Area) button for details of the fields.
• Delete (Area)
  • Deletes the Highlighted Area.
  • All Shelves for that area must be deleted first.
• Refresh
  • Refreshes the screen

• Add (Shelf)
  • An Area must be Highlighted to associate the shelf beign added with.
  • Opens a dialog which allows Adding a new Shelf to the Highlighted Area. Fields include:
    • Shelf
      • Shelf to be Added.
    • Category
      • This field is not used elsewhere in the system but can be used to categorize the shelf.
• Update (Shelf)
  • Open a dialog which allows updating of Shelf information for the highlighted Shelf.
  • See the Add (Bin) button for details of the fields.
• Delete (Shelf)
  • Deletes the Highlighted Shelf.
  • All Bins for that shelf must be deleted first.

• Add (Bin)
  • A Shelf must be highlighted to accociate the bin being added with.
  • Opens a dialog which allows Adding a new Shelf to the Highlighted Area. Fields include:
    • Bin
      • Bin to be Added.
    • Capacity (Qty)
      • Total Qty the bin can hold.
    • Capacity (Cube)
      • Total Cube the bin can hold.
    • Category
      • {Future}
    • Location Type
      • Select a Location Type for the Bin.
    • Physical Location
      • Locations with an Area Type of Pallet can be assigned a Physical Location. The next three fields are where the physical location is kept.
        • Physical Area
        • Physical Shelf
        • Physical Bin
    • Picking Seq
      • Walking Sequence in which locations will be listed on the Pick Sheet.
    • Picking Zone
      • Sets which Picking Zone the location is a part of. This is usually a group of forward picking locations organized together for replenishment.
      • Used for RF Receive Against PO for Picking Replenishment and RF Zone Putawayand Cart Picking Functions.
    • Putaway Seq
      • Walking Sequence in which locations will be listed for Directed Putaway Operations.
    • Putaway Zone
      • This field is used for RF Receive Against PO for Picking Replenishment and RF Zone Putaway for Grouping Picking Locations together with Putaway Staging Locations.
    • Receiving Zone
      • This field is used for RF Receive Against PO for Picking Replenishment for defining a Receiving Location as a Receiving Zone to which Putaway pallets will be assigned.
    • Replen Zone
      • (Future)
    • ROP
      • Re Order Point in base units for items in the Bin.
    • Scan
      • Scan code used by the RF for this locaiton.
    • Status
      • Enabled - Inventory can be Allocated and Picked from the location.
      • Disabled - Inventory is frozen in the location.
• Update (Bin)
• Open a dialog which allows updating of Bin information for the highlighted bin.
• See the Add (Bin) button for details of the fields.
• Delete (Bin)
• Deletes the Highlighted Bin.
