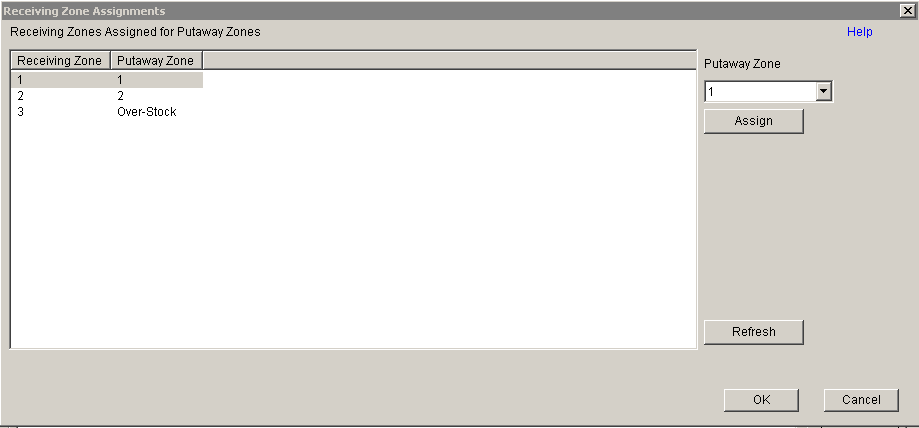

This screen is opened by clicking Receiving Zone Assignments on the Setup Menu. It is used to assign Putaway Zones to Receiving Zones for use with the RF Receive Against PO for Picking Replenishment function.

Locations are assigned Receiving Zones and Putaway Zones on the Setup Locations Screen.

Buttons

• Assign
  • Assigns the Putaway Zone (or Over Stock or Unassigns) selected in the Putaway Zone drop down to the highlighted Receiving Zone.
• Refresh
  • Refreshes the List.
• OK
  • Exits Screen.
• Cancel
  • Exits Screen.

Fields

• Putaway Zone
  • Lists the Putaway Zones defined in the Setup Locations Screen as well as Over-Stock and Un-Assigned.
  • Select Un-Assigned to remove an assignment from a Receiving Zone.
