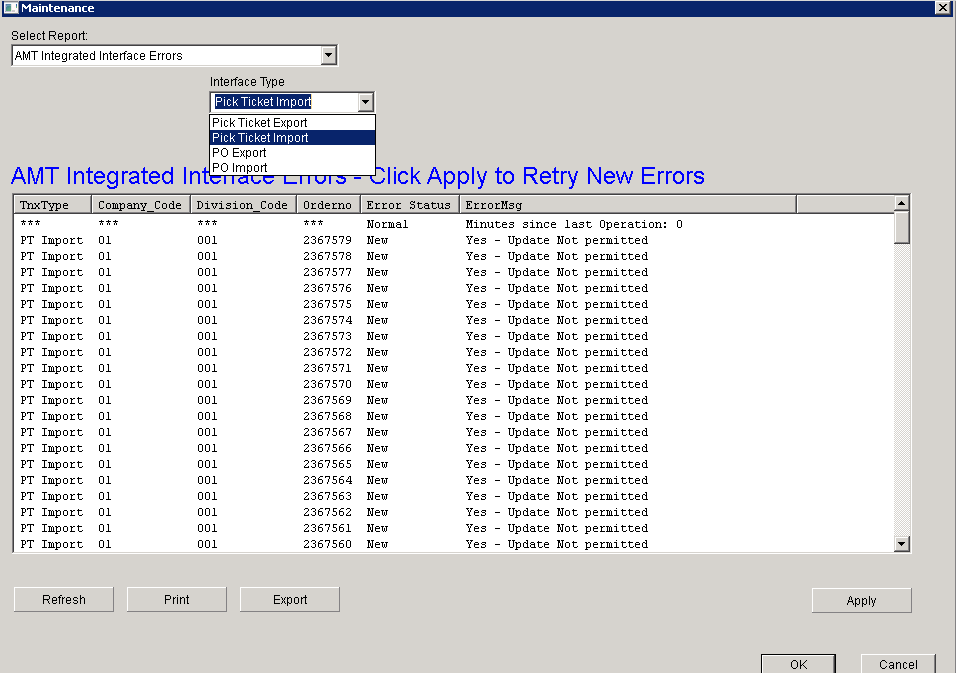

SETUP – MAINTENANCE – AMT INTEGRATED INTERFACE ERRORS

Overview

·         This screen is used to primarily query pick tickets and purchase orders that has errors which are waiting to be imported from AMT and exported back to AMT.

·         This screen is also used to monitor the Integrated AMT Interface application if it has been operating and from this screen; customers can retry pick ticket and purchase orders to be imported and exported again after they have corrected the error.

·         This screen can be access by going to Set-up – Maintenance screen and choosing ‘AMT Integrated Interface errors’ on the Select Report drop down.

Fields

·         Interface Type

o        This drop down field shows four different Interface type to filter the list of errors to show up in the table.

           -Pick Ticket Export – orders waiting to be exported back to AMT from Coreflex.

         -Pick Ticket Import – orders waiting to be imported to Coreflex from AMT.

         -PO Export– purchase orders waiting to be exported back to AMT from Coreflex.

         -PO Import - purchase orders waiting to be imported to Coreflex from AMT.

·         Select Report

o        This drop down field shows the different Maintenance reports in the system.

List Columns

·         AMT Integrated Interface Errors list column

o        This will show up a list of pick tickets or purchase orders that have errors, depending on the Interface type being used.

o        The first row of this column is used to monitor the Integrated AMT Interface application if it has been operating.

§         Minutes since last operation shows how many minutes was the last time an order or PO have been transacted. If this goes beyond the default Integrated Interface timer of 5 minutes, it will produce a warning error status.

o        List of columns:

§         Company Code

§         Division Code

§         Error Msg – this shows an expounded information about the error to help customers fix the error

§         Error Status

§         Orderno

§         TxnType

Buttons

·         Apply

o        This button is used to retry PT/PO having errors to be imported or exported again after the error has been corrected.

·         Export

o        This button is used to export the List Column to a .txt or .csv file as needed.

·         Print

·         Refresh

o        This will refresh the list of information in the List Column.
