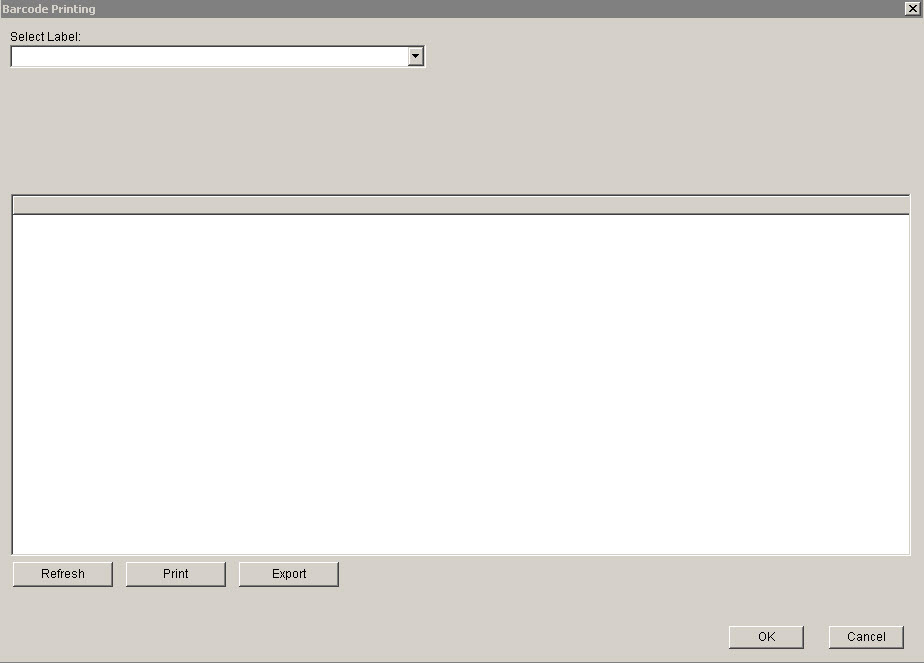

This screen is accessed by clicking Labels on the Barcodes Menu.

Fields

• Select Label
  • Choose the Label you wish to print from the List.

Buttons

• Export
  • Exports the data on the screen .
• Print
  • Prints the highlighted labels on the screen.
• Refresh
  • Refreshes the Query.

System Settings

The labels print using the System Settings settings in the Printers: Generic Label section:

• Printers: Generic Label Sheet Mode
  • No (default)= Label Roll Printing
  • Yes = Avery Sheet Printing (default sheet is 5161/8161 2 columns of 10, 1"X4" labels.
• Printers: Generic Label Sheet Columns
  • Number of Columns on Label Sheet
• Printers: Generic Label Sheet Rows
  • Number of Rows on Label Sheet
• Printers: Generic Label Sheet Left Margin
  • Pixels to shift the entire sheet to the right
• Printers: Generic Label Sheet Top Margin
  • Pixels to shift the entire sheet down
• Printers: Generic Label Sheet Length Spacing (in Pixels)
  • Pixels from the left of first label to the left side of next label on sheet
• Printers: Generic Label Sheet Height Spacing (in Pixels)
  • Pixels from the top of first label to the top of next label on sheet

The Number of pixels can be calculated as follows:
Generic Label: Inches x 200dpi = Pixels (ie 8.5inches = 1700 Pixels)
Pallet Label: Inches x 300 dpi = Pixels (ie 8.5inches = 2550 Pixels)

Additional Settings control the font and position of the individual labels:

• Printers: Generic Label Text1 Position (x,y) (default 50,40)

• Printers: Generic Label Text1 Font (default Arial)

• Printers: Generic Label Text1 Font Size (default 12)

• Printers: Generic Label Barcode Position (x,y) (default 50,80)

• Printers: Generic Label Barcode Font (default ADVC128C)

• Printers: Generic Label Barcode Font Size (default 20)

• Printers: Generic Label Text2 Position (x,y) (default 50,175)

• Printers: Generic Label Text2 Font (default Arial)

• Printers: Generic Label Text2 Font Size (default 10)


Settings for Popular Name Brand Label Sheets:

Pallet Label using MACO item number ML0400 - 2x2 Label Sheet

Pallet Tracking: Pallet Label Sheet Mode = Yes
Pallet Tracking: Pallet Label Sheet Columns = 2
Pallet Tracking: Pallet Label Sheet Rows = 2
Pallet Tracking: Pallet Label Sheet Left Margin = 0
Pallet Tracking: Pallet Label Sheet Top Margin = 75
Pallet Tracking: Pallet Label Sheet Length Spacing = 1200
Pallet Tracking: Pallet Label Sheet Height Spacing = 1575

Avery form 5160 Settings (3 columns of 10 rows, 1" x 2 5/8")

Printers: Generic Label Sheet Mode = Yes
Printers: Generic Label Sheet Columns = 3
Printers: Generic Label Sheet Rows = 10
Printers: Generic Label Sheet Top Margin = 0
Printers: Generic Label Sheet Left Margin = 0
Printers: Generic Label Sheet Length Spacing = 550
Printers: Generic Label Sheet Height Spacing = 200

MACO form AVE-A460 Settings (3 columns of 10 rows, 1" x 2 5/8")

Printers: Generic Label Sheet Mode = Yes
Printers: Generic Label Sheet Columns = 3
Printers: Generic Label Sheet Rows = 10
Printers: Generic Label Sheet Top Margin = 0
Printers: Generic Label Sheet Left Margin = 0
Printers: Generic Label Sheet Length Spacing = 550
Printers: Generic Label Sheet Height Spacing = 202

Avery form 8161 Settings (2 columns of 10 rows, 1" x 4")

Printers: Generic Label Sheet Mode = Yes
Printers: Generic Label Sheet Columns = 2
Printers: Generic Label Sheet Rows = 10
Printers: Generic Label Sheet Top Margin = 0
Printers: Generic Label Sheet Left Margin = 0
Printers: Generic Label Sheet Length Spacing = 800
Printers: Generic Label Sheet Height Spacing = 200

Avery form 5963 Settings (2 Columns of 5 Rows, 1 3/4" x 4")

Printers: Generic Label Sheet Mode = Yes
Printers: Generic Label Sheet Columns = 2
Printers: Generic Label Sheet Rows = 5
Printers: Generic Label Sheet Top Margin = 150
Printers: Generic Label Sheet Left Margin = 150
Printers: Generic Label Sheet Length Spacing = 700
Printers: Generic Label Sheet Height Spacing = 350
